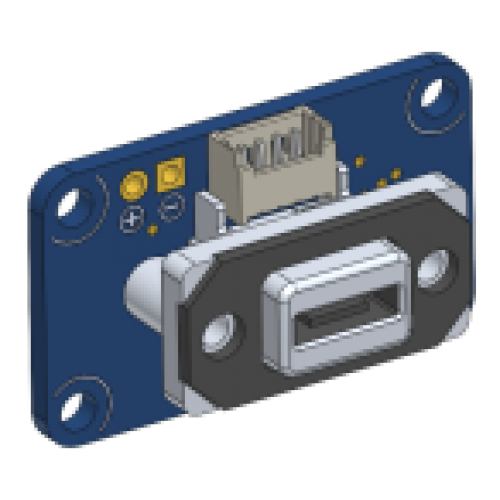

The Mini-Battery-Supervisor is a tiny circuit which makes it possible use a battery pack as power supply for low-power USB electronic appliances, while keeping the ability to connect a USB cable when needed.
More precisely, the Mini-Battery-Supervisor has four purposes:
- It reduces the voltage provided by the battery to 5V, which is the maximal voltage expected by USB powered appliances;
- It monitors the battery voltage to cleanly cut the appliance power supply when the battery is about to be depleted, in order to protect the appliance and the battery;
- It makes it possible to connect simultaneously the battery and an external USB host to the appliance, for configuration and diagnosis purposes;
- It features a rugged panel-mount Micro-B USB connector, which can be integrated in the front panel of an enclosure for instance.
Max current (Cont.):500mA
Max current (peak):1.5A
Threshold voltage:3.5 / 4.5 / 5 / 6.4V
Protection class, according to IEC 61140:class III
Normal operating temperature:5...40Ðƒ
Extended operating temperature1:-40...85Ðƒ
RoHS compliance:RoHS III (2011/65/UE+2015/863)
Harmonized tariff code:9032.9000
1 The extended temperature range is defined based on components specifications and has been tested during a limited duration (1h). When using the device in harsh environments for a long period of time, we strongly advise to run extensive tests before going to production.
Accessories and related products
|User manual (HTML)|
|User manual (PDF)|
|3D file (STEP)|
- Brand: Yoctopuce
- Product Code: MUSBLDO0
